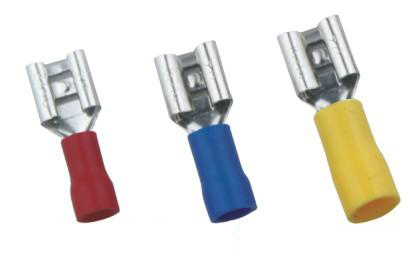

母預絕緣片形端頭型號參數
導線截面：0.5～1.5mm2（美國線規 22～16) 電大電流：Imax=10A 材質：黃銅
|
型 號 |
Name Tab(mm) |
材料厚度 |
尺寸Dimension(mm) |
顏色 |
|
B |
Dφ |
dφ |
L |
H |
|
FDD 1.25-110(5) |
0.5×2.8 |
0.3 |
3.8 |
3.8 |
1.7 |
19.0 |
10.0 |
紅 |
|
FDD 1.25-110(8) |
0.8×2.8 |
0.3 |
3.8 |
3.8 |
1.7 |
19.0 |
10.0 |
|
FDD 1.25-187(5) |
0.5×4.75 |
0.35 |
5.6 |
3.8 |
1.7 |
19.0 |
10.0 |
|
FDD 1.25-187(8) |
0.8×4.75 |
0.35 |
5.6 |
3.8 |
1.7 |
19.0 |
10.0 |
|
FDD 1.25-205 |
0.5×5.2 |
0.35 |
6.5 |
3.8 |
1.7 |
20.0 |
10.0 |
|
FDD 1.25-250 |
0.8×6.35 |
0.4 |
7.4 |
3.8 |
1.7 |
21.0 |
10.0 |
電大電流:4～6mm2（美國線規 12～10) 電大電流：Imax=24A 材質：黃銅
|
Item No |
Name Tab(mm) |
Thickness of material |
Dimension(mm) |
Color |
|
B |
Dφ |
dφ |
L |
H |
|
FDD 5.5-250 |
0.8×6.35 |
0.4 |
7.4 |
5.7 |
3.4 |
25.0 |
13.0 |
黃 |
|
FDD 5.5-375 |
1.2×9.4 |
0.5 |
10.9 |
5.7 |
3.4 |
29.6 |
13.0 |
|
Item No |
Name Tab(mm) |
Thickness of material |
Dimension(mm) |
Color |
|
B |
Dφ |
dφ |
L |
H |
|
FDD 2-110(5) |
0.5×2.8 |
0.3 |
3.8 |
4.3 |
2.3 |
19.0 |
10.0 |
藍 |
|
FDD 2-110(8) |
0.8×2.8 |
0.3 |
3.8 |
4.3 |
2.3 |
19.0 |
10.0 |
|
FDD 2-187(5) |
0.5×4.75 |
0.35 |
5.6 |
4.3 |
2.3 |
19.0 |
10.0 |
|
FDD 2-187(8) |
0.8×4.75 |
0.35 |
5.6 |
4.3 |
2.3 |
19.0 |
10.0 |
|
FDD 2-205 |
0.5×5.2 |
0.35 |
6.5 |
4.3 |
2.3 |
20.0 |
10.0 |
|
FDD 2-250 |
0.8×6.35 |
0.4 |
7.4 |
4.3 |
2.3 |
21.0 |
10.0 |
|
FDD 2-312 |
0.8×8.0 |
0.4 |
9.0 |
4.3 |
2.3 |
23.0 |
10.0 | |
