一、產品介紹

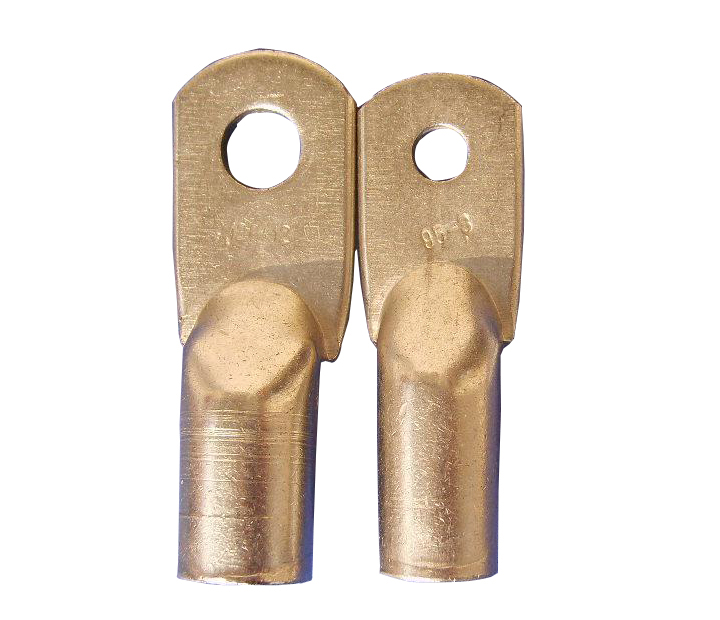

JG短壓銅鼻適用于配電裝置中電線，電力電纜與電器設備的連接。采用（T2）銅管料壓制，表面鍍錫。
二、規格材質
紫銅管 ， 表面處理：紫銅本色或紫銅鍍錫。
三、主要適用范圍
家用電器,電氣業，機械設備廠,船廠，配電柜配電箱等 產品外觀規格良好，導電性能好,安全. JG銅鍍錫接線端子就是在原來銅接線端子的基礎上,在表層鍍上一層"錫",增強銅端子的導電能力。 |
短壓銅鼻型號參數：
|
型號 |
尺寸 mm |
|
D |
d |
L1 |
B |
Φ |
t |
L |
|
JG10-6 |
8.0 |
5.4 |
18.0 |
12.0 |
6.5 |
2.5 |
38.0 |
|
JG10-8 |
12.0 |
8.5 |
2.5 |
38.0 |
|
JG10-10 |
14.0 |
10.5 |
1.9 |
40.0 |
|
JG16-6 |
9.0 |
6.0 |
18.0 |
13.0 |
6.5 |
2.9 |
40.0 |
|
JG16-8 |
13.0 |
8.5 |
2.9 |
40.0 |
|
JG16-10 |
15.0 |
10.5 |
2.7 |
40.0 |
|
JG16-12 |
17.0 |
13.0 |
2.6 |
45.0 |
|
JG25-6 |
10.0 |
7.0 |
19.0 |
14.0 |
6.5 |
2.9 |
45.0 |
|
JG25-8 |
14.0 |
8.5 |
2.9 |
45.0 |
|
JG25-10 |
15.0 |
10.5 |
2.7 |
45.0 |
|
JG25-12 |
17.0 |
13.0 |
2.4 |
47.0 |
|
JG35-6 |
11.0 |
8.0 |
22.0 |
16.0 |
6.5 |
2.9 |
50.0 |
|
JG35-8 |
16.0 |
8.5 |
2.9 |
50.0 |
|
JG35-10 |
16.0 |
10.5 |
2.9 |
50.0 |
|
JG35-12 |
19.0 |
13.0 |
2.6 |
54.0 |
|
JG50-6 |
13.0 |
10.0 |
23.0 |
18.5 |
6.5 |
2.9 |
54.5 |
|
JG50-8 |
18.5 |
8.5 |
2.9 |
54.5 |
|
JG50-10 |
18.5 |
10.5 |
2.9 |
54.5 |
|
JG50-12 |
19.0 |
13.0 |
2.9 |
54.5 |
|
JG50-14 |
22.5 |
15.0 |
2.6 |
54.5 |
|
JG50-16 |
22.5 |
17.0 |
2.6 |
54.5 |
|
JG70-8 |
16.0 |
12.0 |
25.0 |
22.5 |
8.5 |
3.9 |
60.0 |
|
JG70-10 |
22.5 |
10.5 |
3.9 |
60.0 |
|
JG70-12 |
22.5 |
13.0 |
3.9 |
60.0 |
|
JG70-14 |
22.5 |
15.0 |
3.9 |
60.0 |
|
JG70-16 |
24.0 |
17.0 |
3.7 |
62.0 |
|
JG95-8 |
17.0 |
13.4 |
26.0 |
24.0 |
8.5 |
3.5 |
66.0 |
|
JG95-10 |
10.5 |
3.5 |
66.0 |
|
JG95-12 |
13.0 |
3.5 |
66.0 |
|
JG95-14 |
15.0 |
3.5 |
66.0 |
|
JG95-16 |
17.0 |
3.5 |
66.0 |
|
JG120-10 |
20.0 |
16.0 |
28.0 |
28.0 |
10.5 |
3.9 |
72.0 |
|
JG120-12 |
13.0 |
3.9 |
72.0 |
|
JG120-14 |
15.0 |
3.9 |
72.0 |
|
JG120-16 |
17.0 |
3.9 |
72.0 |
|
JG150-10 |
22.0 |
17.0 |
34.0 |
31.0 |
10.5 |
4.9 |
80.0 |
|
JG150-12 |
13.0 |
4.9 |
80.0 |
|
JG150-14 |
15.0 |
4.9 |
80.0 |
|
JG150-16 |
17.0 |
4.9 |
80.0 | |
|
