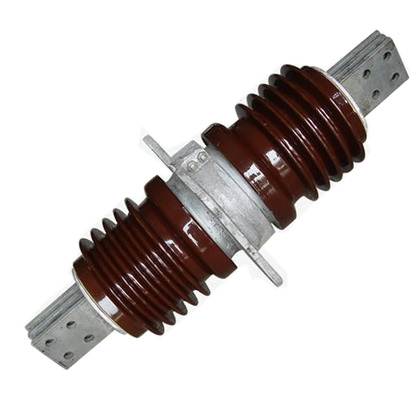

CLB-35KV/200A 3150A戶內鋁排高壓穿墻套管型號表：
|
CLB-B-35KV/200A |
|
CLB-35KV/400A |
|
CLB-35KV/600A |
|
CLB-35KV/1000A |
|
CLB-35KV/1500A |
|
CLB-35KV/2000A |
|
CLB-35KV/3000A |
|
CLB-35KV/3150A |
CLB-35KV/200A 3150A戶內鋁排穿墻套管參數表：
|
型號 |
額定電壓KV |
額定電流 |
5秒鐘短時電流kA不小于 |
戶外端公稱爬電距離mm |
工頻電壓kv不小于 |
BIL KV peak 不小于 |
彎曲破壞負荷kN不小于 |
重量kg |
|
干耐受 |
濕耐受 |
擊穿 |
可見電暈 |
|
CLB-35/200 |
35 |
400 |
- |
595 |
110 |
80 |
176 |
25.8 |
1955 |
7.5 |
- |
|
CLB-35/400 |
35 |
400 |
7.2 |
595 |
110 |
80 |
176 |
25.8 |
195 |
7.5 |
33 |
|
CLB-35/600 |
35 |
600 |
12 |
595 |
110 |
80 |
176 |
25.8 |
195 |
7.5 |
35.5 |
|
CLB-35/1000 |
35 |
1000 |
20 |
595 |
110 |
80 |
176 |
25.8 |
195 |
7.5 |
37.5 |
|
CLB-35/1500 |
35 |
1500 |
30 |
595 |
110 |
80 |
176 |
25.8 |
195 |
7.5 |
39.5 |
|
CLB-35/2000 |
35 |
2000 |
40 |
810 |
110 |
80 |
176 |
25.8 |
195 |
7.5 |
73 |
|
CLB-35/3000 |
35 |
2000 |
40 |
810 |
110 |
80 |
176 |
25.8 |
195 |
7.5 |
74 |
|
CLB-35/3150 |
35 |
3500 |
40 |
810 |
110 |
80 |
176 |
25.8 |
195 |
7.5 |
75 |
