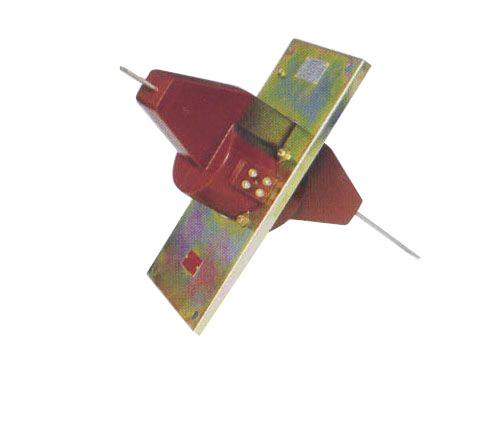

LFC-10 LFCD-10 LFCQ-10 LFCQD-10 電流互感器參數表：
|
產品型號 |
額定電流比 |
級次組合 |
準確級及額定輸出 |
保護級 |
額定短時 |
額定功穩定電流 |
|
0.2級 |
0.5級 |
1級 |
3級 |
額定輸出 |
準確級及準確限值系數 |
|
LFC-10 |
15/5 |
0.5/0.5
1/1
0.5/3
1/3 |
|
15 |
15 |
30 |
|
|
1.2 |
3.8 |
|
20/5 |
1.5 |
3.3 |
|
30/5 |
2.3 |
5.0 |
|
40/5 |
3.0 |
5.6 |
|
50/5 |
3.8 |
8.3 |
|
75/5 |
5.6 |
12.4 |
|
100/5 |
7.5 |
16.5 |
|
150/5 |
11.3 |
24.8 |
|
200/5 |
15 |
33 |
|
300/5 |
22.5 |
49.5 |
|
400/5 |
30 |
66 |
|
LFCQ-10 |
5/5 |
1/1
1/3 |
|
|
15 |
30 |
|
|
0.5 |
0.5 |
|
10/5 |
1.1 |
1.8 |
|
15/5 |
1.7 |
3.8 |
|
20/5 |
2.2 |
5 |
|
30/5 |
3.3 |
7.5 |
|
40/5 |
4.4 |
10 |
|
50/5 |
5.5 |
12.5 |
|
75/5 |
8.3 |
18.58 |
|
100/5 |
11 |
25 |
|
150/5 |
16.5 |
37.5 |
|
200/5 |
22 |
50 |
|
300/5 |
33 |
75 |
|
400/5 |
44 |
100 |
|
LFCD-10 |
50/5 |
10P/0.5
10P/3
10P/10P |
|
15 |
|
30 |
15 |
10P10 |
3.8 |
8.3 |
|
75/5 |
5.6 |
12.4 |
|
100/5 |
7.5 |
16.5 |
|
150/5 |
11.3 |
24.8 |
|
200/5 |
15 |
33 |
|
300/5 |
22.5 |
49.5 |
|
400/5 |
30 |
66 |
|
LFCQD-10 |
75/5 |
10P/0.5
10P/1
10P/3
10P/10P |
|
15 |
15 |
30 |
15 |
10P15 |
8.3 |
18.58 |
|
100/5 |
11 |
25 |
|
150/5 |
16.5 |
37.5 |
|
200/5 |
22 |
50 |
|
300/5 |
33 |
75 | |
